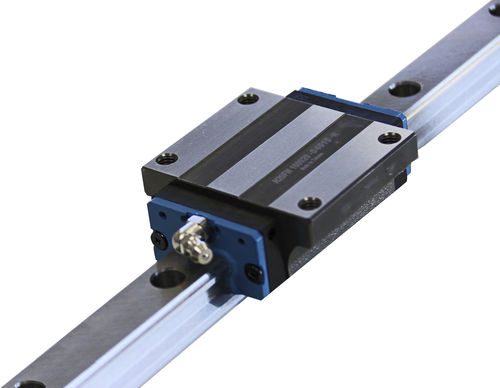

Ball bearing guideway TRH-FN-FE-VN-VE

precisionfor heavy loadsanti-corrosion

Suppleness of travel - The new design of the ball recirculation system allows a flexible and regular movement. Precision - All our range will be now in high precision (H). Linear guideway blocks - A larger supply, with a choice of size and fixing much broader. Linear guideway Rails - To facilitated the maintenance, the rails will now be unique for all blocks of the same size. TRH-FN/FL - wide carriage - Standard loads TRH-FE - wide carriage - heavy standard TRS-VN - narrow carriage / Low - Heavy loads TRC-VE - narrow carriage / High - Heavy loads TRC-VL - narrow carriage / High - Standard Load TRS-VE - narrow carriage / Low - Very Heavy load TRS-VS - narrow carriage / Low - Standard loads - 2 fixing holes TRH-VE - narrow carriage / High - Heavy loads TRH-VL - narrow carriage / High - Standard loads TRH-FE - wide carriage - Heavy loads A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using recirculating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion. Compared to a traditional slide, the coefficient of friction for a linear guideway is only 1/50th. Because of the restraint effect between the rails and the blocks, linear guideways can take up loads in both the up/down and the left/right directions. Lubrication : The whole of our linear guideway are provided with a greasing nipple at the end. As for the lateral installation, we recommend that the nipple should be mounted at the non-reference side, other wise please contact us. Seal : In standard all our linear guideway have end seal and bottom seal.
