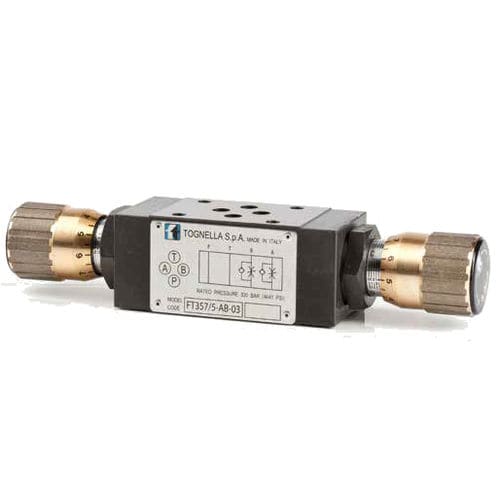

Needle valve FT 357/5cartridgemanualflow control
Add to favorites
Compare this product
Characteristics
- Type
- needle, cartridge
- Operation
- manual
- Function
- flow control
- Media
- for oil
- Body
- with Cetop flange connections
- Other characteristics
- single-acting
- Pressure
320 bar
(4,641.2 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 35 l/min
(9.25 us gal/min)Min.: 1 l/min
(0.26 us gal/min)
Description
Single-acting flow control stackable valves Cetop3 available with controlled flow on A-B or double A+B lines, max. working pressure 320 Bar, adjustable oil flow rate from 0,5 to 35 Lt./min.
