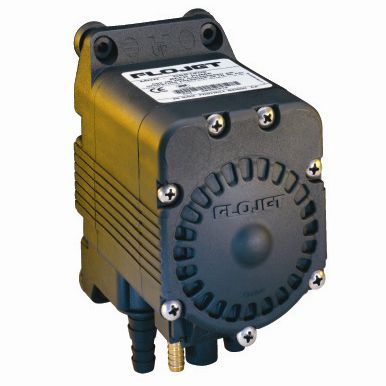

Diaphragm pump G60 waterhandself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- hand
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- distribution, booster, service
- Material
- stainless steel
- Other characteristics
- flow
- Flow
18.9 l/min
(4.99285 us gal/min)- Pressure
Max.: 6.2 bar
(89.923 psi)Min.: 1.4 bar
(20.305 psi)- Fluid temperature
49 °C
(120.2 °F)- Length
134 mm
(5 in)- Width
81.5 mm
(3.21 in)- Height
116 mm
(4.57 in)- Weight
0.56 kg
(1.23 lb)
Description
Ultimate performance and reliability with extended service life
Quiet operation
Easy installation with quick disconnect ports
Applications:
Water boosting for filtration systems, supply carbonators, non-carbonated dispensing valves, carts, coffee manchines, hand sinks, ice machines and FCB equipment.
Supplies up to 4 GPM (15L/min).
Note: If pumping over 1/7 GPM (6.4L/min), a pulsation dampener or accumulator tank should be utilised to reduce pulsation due to momentary shifts in flow requirements.
