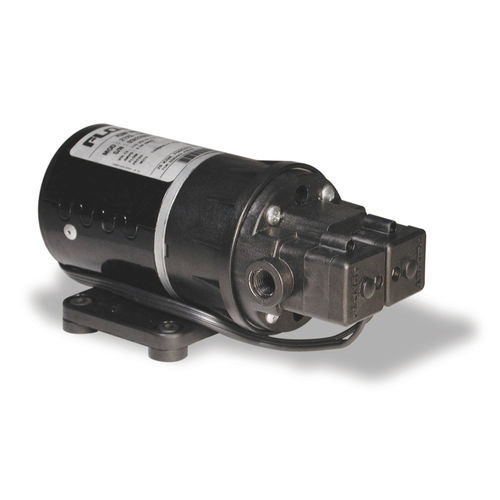

Water pump 2125 serieselectricself-primingstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- distribution
- Voltage
- 230 V, 115 V
- Other characteristics
- built-in
- Flow
14.8 l/s, 29.5 l/s
(3.90975 us gal/s, 7.79308 us gal/s)- Pressure
3.4 bar, 6.2 bar
(49.313 psi, 89.923 psi)- Head
1.8 m
(5'10" )
Description
Built-in vacuum switch shuts off pump when bag is empty. When full bag is connected, pump will restart automatically
Pressure switch allows pump to turn on and off automatically when dispensing valve is opened or closed
Self-priming up to 6 ft (1.8m)
Runs dry without damage
Applications:
Designed for dispensing Bag-in-Box syrups, juice concentrate (without pulp or particulate), teas, Bag-in-Box wines and liquor
Ideal for use in mobile carts and vending applications, where CO2 is not available
SPECIFICATIONS:
PUMP DESIGN: Double diaphragm
PORTS: ¼" (6.3 mm) NPT, female
MOTOR: Permanent magnet with solid state rectifier
CYCLES: 50/60 Hz
RECOMMENDED DUTY CYCLE: 25%
APPROVALS: NSF Standard 18 UL listed
WARRANTY: 1 Year
