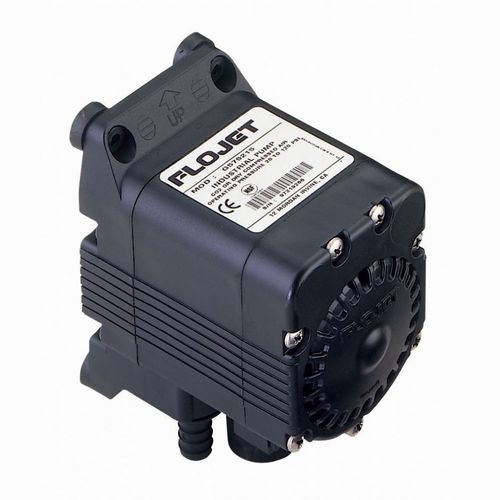

Double-diaphragm pump G57 seriesfor chemicalspneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- for chemicals
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, handling, distribution, cleaning
- Other characteristics
- for high flow rates
- Flow
5 us gal/min
(18.92706 l/min)- Pressure
Max.: 100 psi
Min.: 20 psi
- Fluid temperature
48.9 °C, 120 °C
(120 °F, 248 °F)- Weight
0.54 kg
(1.19 lb)
Description
Highest flow rate for any air pump of comparable size
Stall-proof design with patented shuttle valve
Easy installation with all quick disconnect ports
Robust design with durable integral mounting
Sanitary design with inset molded diaphragm
Leak resistant radial seals, no critical O-ring seals
Quiet operation with large exhaust muffler
Innovative compact design features a patented shuttle valve that eliminates stalling and provides a long life. Features a chemically resistant polypropylene body with a choice of EP/PP blend, FKM or FFKM elastomers, as well as quick disconnect liquid and gas port fittings for easy installation.
