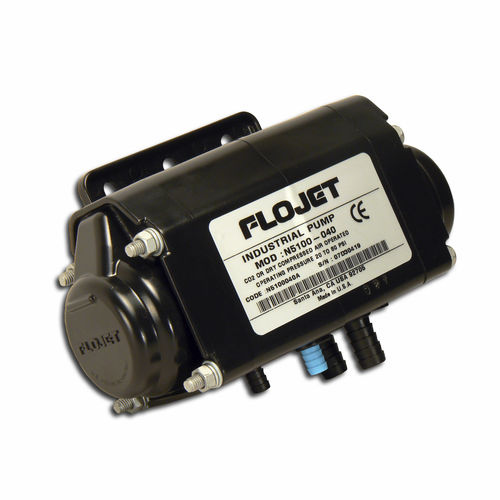

Diaphragm pump N5100 seriesfor chemicalsairpneumatic
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals, air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- handling
- Material
- PP
- Other characteristics
- compact
- Flow
2.5 us gal/min
(9.46353 l/min)- Pressure
Min.: 20 psi
Max.: 80 psi
- Fluid temperature
Min.: 40 °C
(104 °F)Max.: 120 °C
(248 °F)- Weight
0.5 kg
(1.1 lb)
Description
Compact design with plug-in hose connections for quick installation
Variety of elastomers to ensure chemical compatibility
Variable capacity from zero to the maximum flow
No pressure relief or bypass plumbing required
Excellent self-priming; pump may be located above the liquid level
FLOJET Industrial N5100 Series Pumps are designed for light general commercial and industrial applications. These pumps are constructed from a selection of materials for handling a broad range of chemicals.
Flojet air-operated diaphragm pumps offer excellent self-priming capability. Pumps can be located above the supply tank. A suctionside foot valve is recommended for best operation. Liquid pressure is regulated by supply air pressure. No bypass or pressure relief plumbing is necessary. Choice of EP/PP blend, Buna, or FKM elastomers provide a wide range of chemical compatibility. Quick disconnect liquid and gas port fittings provide easy installation.
