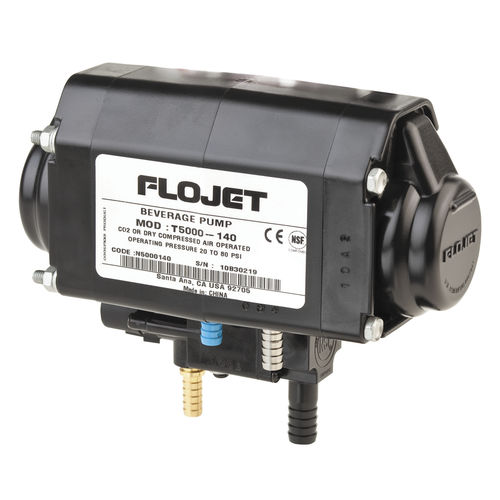

Diaphragm pump T5000 seriesfor food productsCO2pneumatic
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for food products, CO2
- Operation
- pneumatic
- Mobility
- stationary
- Domain
- industrial
- Applications
- distribution
- Material
- stainless steel
- Other characteristics
- compact, suction, automatic
- Flow
Max.: 0.1183 l/s
(0.03125 us gal/s)Min.: 0 l/s
(0 us gal/s)- Pressure
Max.: 80 psi
Min.: 20 psi
- Fluid temperature
Max.: 120 °F
(48.9 °C)Min.: 34 °F
(1.1 °C)- Weight
0.54 kg
(1.19 lb)
Description
Bag-in-Box (BIB) syrup pump
Gas (CO2) / air driven pump
Maintains constant pressure at the dispensing valve
High suction capability empties syrup down to a minimum residual
Compact design with quick disconnection fittings for simple, quick installation
Shuts off automatically when bag is empty and restarts when bag is connected; high altitude shut-off also available
Fully automatic, operates only when beverage is being dispensed
1/4" (6.35mm) barbed, CO2 exhaust port connection for venting away from confined areas
Flojet T5000 Series air operated diaphragm pumps are designed for dispensing Bag-in-Box (BIB) syrups, juice concentrate (without pulp or particulates), teas, wines and liquor. Engineered for ultimate performance and reliability they provide compatibility with a wide variety of syrups and concentrates and supply the following from remote location: Four (4) x 3.0 oz (89ml) valves (each dispenses at 0.5 oz/sec); or two (2) x 4.5 oz (133ml) valves (each dispenses at 0.75 oz/sec).
Catalogs
Flojet Beverage Catalogue
43 Pages
