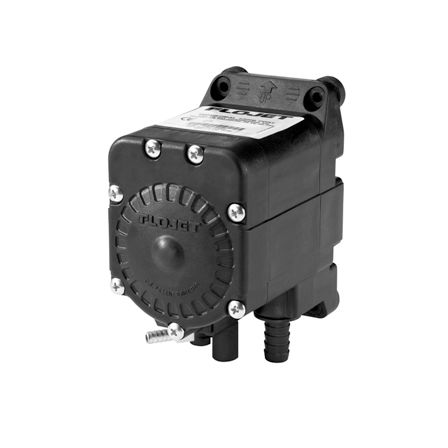

Diaphragm pump G80 waterfor food productsCO2
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, for food products, CO2
- Operation
- pneumatic
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering, distribution
- Other characteristics
- flow
- Flow
177.4 l/s
(46.86412 us gal/s)- Pressure
Max.: 80 psi
Min.: 20 psi
- Fluid temperature
Max.: 120 °F
(48.9 °C)Min.: 34 °F
(1.1 °C)- Length
134 mm
(5 in)- Width
81.5 mm
(3.21 in)- Height
116 mm
(4.57 in)- Weight
0.56 kg
(1.23 lb)
Description
Patented enlarged diameter check valves, capable of passing pulp and particles easily
Highest flow rate available. Capable of CO2 inlet pressuers up to 80 psi (5.5 bar)
Ultimate performance and reliability with the patented shuttle valve
Shuts off automatically when bag is empty and restarts when bag is connected
Quiet operation with exhaust muffler
Easy installation with quick disconnect ports
Applications:
Designed for dispensing Bag-in-Box syrups, juice concentrates which have pulp and particles (up to 1/8" or 3mm)
