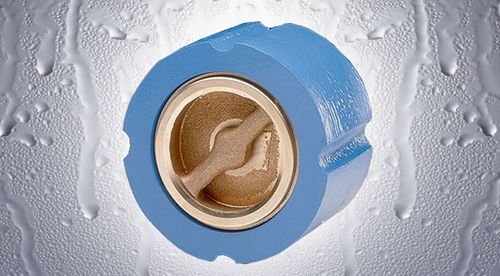

Disc check valve 888, 888Rwafercast iron
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Body
- wafer
- Material
- cast iron
- DN
Max.: 250 mm
(9.843 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 400 psi
Min.: 0 psi
- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)
Description
Pressure Max: 200 PSI: ANSI 125, 400 PSI: ANSI 250
Temp Max: 180°F (80°C)
New patented design. Cast iron body with epoxy coating. Wafer connection ANSI 125/250. Metal to metal seating with stainless steel spring.
Note: Viton seal 2-10
For Model 888R add R to end of part number and 10%.
Catalogs
Wafer check valve
2 Pages
