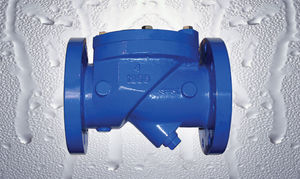

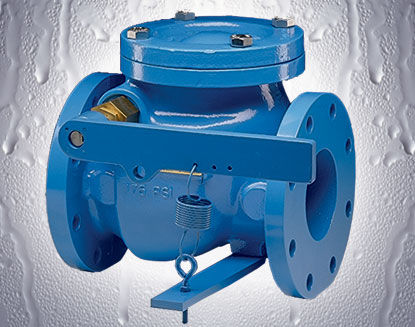

Swing check valve 90LS/92LScast iron
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Material
- cast iron
- DN
Max.: 750 mm
(29.528 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 200 psi
Min.: 150 psi
- Temperature
80 °C
(176 °F)
Description
Size(s): 2 to 30 in. (50 to 750 mm)
Description:
90LS/92LS* - Epoxy coated cast iron body. Meets AWWA C508 specifications. Flanged connection ANSI B16.1, class 125, with stainless steel shaft. Metal to metal standard or NITRILE (Buna-N) seal (Please add “R” to end of part number) Features external lever and spring.
For vertical installation add “V” to end part number.
Temp Max: 180°F (80°C)
Pressure Max: 200 PSI: 2"-12", 150 PSI: 14"-30"
Catalogs
No catalogs are available for this product.
See all of Flomatic‘s catalogs
