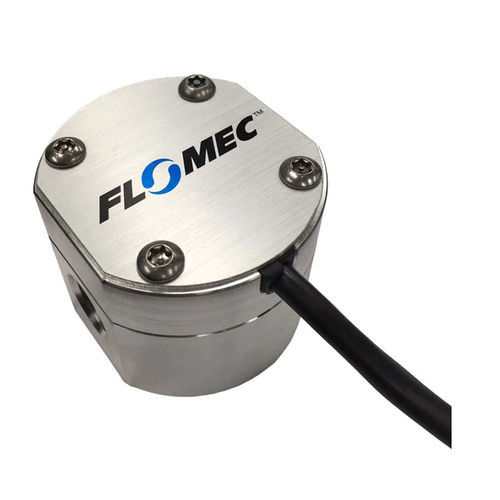

Oval gear flow meter EGM00 series

magneticgearpositive displacement

The FLOMEC® EGM Series Oval Gear meters provide exceptional accuracy and repeatability in an economical package. With a wide range of applications measuring non-flammable clean liquids. Direct volumetric measurement from the positive displacement design gives you a flow measurement that is unaffected by changes in temperature, pressure, or viscosity – factors which can cause measurement errors in other flow meter technologies. With a simple and reliable design concept using only two moving parts with a single hall effect magnetic sensor, they provide long service life and minimised maintenance costs. The addition of an optional PT100 temperature sensor provides flow and temperature readings for unique applications such as diesel fuel consumption monitoring. Features & Benefits High accuracy and repeatability, measures every drop and saves waste in your process Low pressure drop, minimising pumping costs Extremely versatile design accurately measures high and low viscosity fluids No requirement for flow conditioning (straight pipe runs) gives a simple and inexpensive installation. Ideal for skids and compact system designs. Only two moving parts provides a reliable product with minimal maintenance costs Optional PT100 temperature sensor integrated into the flow meter housing provides flow and temperature readings, allowing highly accurate volume measurements in heated systems (such as combustion engines) Typical Applications Diesel injector/pump test equipment Chemical dispensing equipment Diesel fuel consumption monitoring Demineralised / RO water dispensing Automotive Fluid Dispensing
