Oval gear flowmeter QM150 series

gearvolumefor fuel

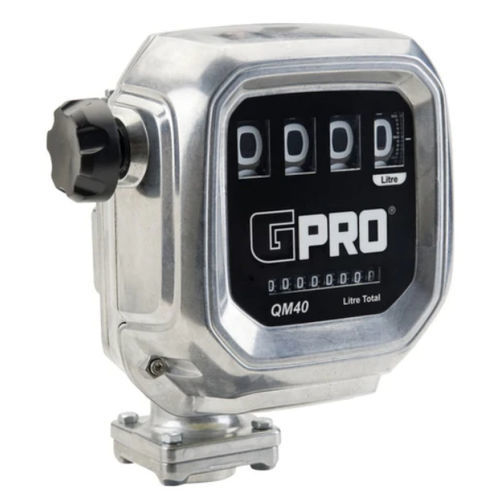

The FLOMEC® QM40 Series Fuel meter is a strong, accurate, and reliable oval gear flow meter capable of handling the toughest conditions. Frictionless mag drive means no seals and no internal leaks. Compatible Fluids Petrol (Up to E15) Diesel Fuel Biodiesel blends (up to B20) Kerosene Avgas Jet A-1 Here's Why: Oval Gear Technology provides 20x more precision at 75 LPM and 4x higher accuracy (1/2%) overall when compared to nutating disc meters. No calibration required. Factory set at +1% accuracy with as low as +0.5% achievable in the field. Accurate at as low as 8 LPM compared to 24 LPM with nutating disc mechanical diesel fuel flow meters. Frictionless Mag Drive means no leaks and no seals internally improving the lifespan and accuracy of your diesel meter. Larger Capacity allows for a flow range of 8 - 150 LPM means a 33% increase in capacity compared to 120 LPM for nutating disc mechanical diesel fuel flow meters. Rotatable Display Mount lets you mount the QM40 in a range of positions allowing for flexibility in installation. Low Pressure Drop makes it the ideal flow meter for gravity fed applications with 7 PSI at 150 LPM and only 1 PSI at 40LPM
