Bluetooth communication module QSI

ModbusBACnetwireless

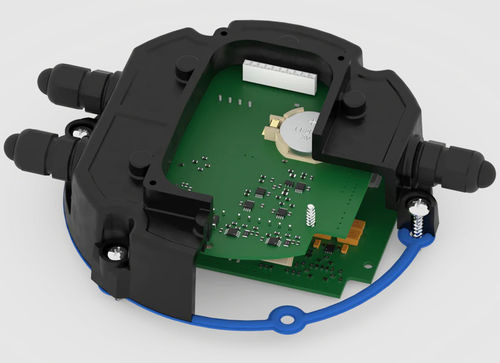

The FLOMEC® QSI communication module is a multi-functional electronics unit designed to enhance product functionality and provide fully-featured communication protocols and process output signals for FLOMEC® meters, while also providing data-logging functionality. A unique feature of the QSI is that programming is simple and can be done by using the FLOMEC® App via Bluetooth® wireless interface technology. In-field firmware updates are easy with the QSI. The QSI Communications Module is the perfect product when a local display is required with the ability to communicate flow data via MODBUS or BACNET serial communications. Features & Benefits: Calculates flow and totals from pick-up coil or digital input pulses Measures temperature from PT100 RTDs BTU (heat) meter calculates energy from flow and temperature inputs Data logger - stores all measured and calculated variables on internal flash memory Access Data Logger information through FLOMEC® app Communication options available: Modbus® RTU and BACnet™ MS/TP Built-in Bluetooth® wireless technology External Programming FLOMEC® App available for mobile devices Receive in-field firmware updates Standard process outputs: Pulse out and 4-20mA
