Batch controller EB11

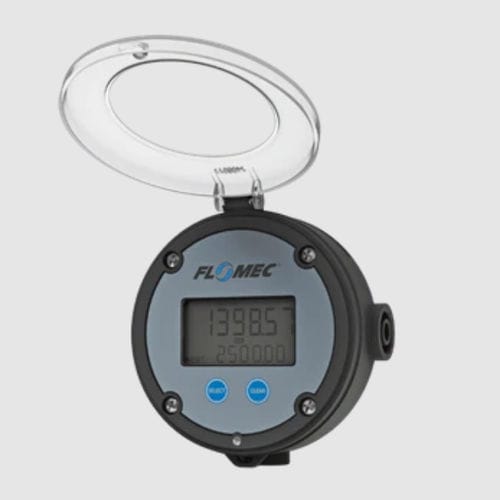

The FLOMEC EB11 “EasyBatch” is a Dual stage batch controller designed to create an efficient and accurate dispensing experience. Mountable either directly onto a FLOMEC® flow meter or remotely, and compatible with multiple types of industry signals, the EB11 allows the user to control the volume of fluid dispensed into their process, while the large 7-digit display with back light enables easy reading of the batch status in either light or dark conditions. Features & Benefits Easy to use 2 button controller Weather resistant and durable IP66/67 - NEMA4X enclosure Easy to read backlit 7-digit display Retained settings after power loss Displays in Liters, gallons, m³, lbs, kgs Housed in an IP66/67-NEMA4X rated Glass Reinforced Nylon enclosure for increased impact and corrosion resistance, particularly in washdown environments. The EB11 contains 2 digital NPN outputs with a current rating of up to 300mA for direct control of solenoid valves, or to connect to relays to allow for the control of large valves and pumps. Typical applications include bottling/packaging, diluting concentrates and addition of ingredients (water, oil, egg etc.) in the following industries; Commercial Baking Agricultural Chemicals Pharmaceuticals & Cosmetics Food Processing Cleaning Products Brewing Water Treatment
