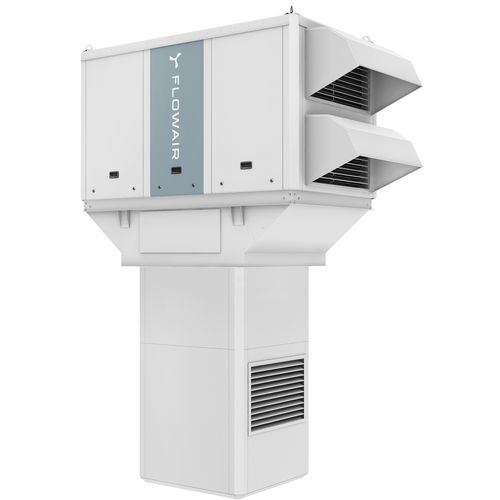

Rooftop air handling unit Cube R8

for large air volumescompact

Cube R8 compact device ensures heating and ventilation with heat recovery. Additionally, Cube R8 is available with a roof base adaptor with an integrated swirl diffuser and actuator. Rotary exchanger, heater and Siemens Climatix control system all in one casing! Unit is equipped with a highly efficient heat recovery system and EC fans, therefore it already meets all requirements in accordance
with the stringent 2018 Ecoproject norms. Cube R8 can be equipped with water exchanger with circulation pumpand three-way valve, electric heater or gas heater. arious options and various mounting possibilities together with high disposal pressure guarantee a wide range of application. The Cube devices are perfect for shopping malls, logistic centers, industrial facilities, petrol stations or supermarkets. The use of compressor with inverter in Cube 20 makes it suitable for use in offices and facilities with many rooms. Control system: Each Cube rooftop is equipped with an advanced Siemens Climatix controller with room temperature sensor Technology/innovation/benefits: Ec fans- electricity savings and steeples regulation of efficiency. Rotary exchanger inside, no need to use an exterior module, effective heat recovery in a compact casing. Roof base with roof adaptor and swirl diffuser enables direct mounting on the roof without the need of ducts. Transport handle-enables fast installation and easy lifting without spacing beams. Casing- 50 mm mineral wool isolation ensures silent operation and minimum heat loss.
