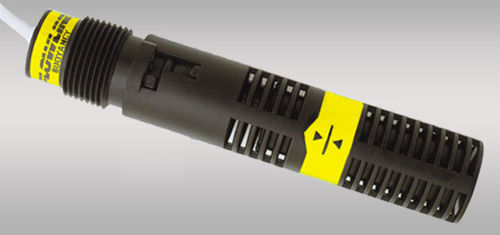

Float level switch Switch-Tek™ LV10 series

for waterfor corrosive liquidsfor tank

The general purpose float liquid level switch provides high or low liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include potable water and boric acid. The baffle body eliminates level switch chatter caused by turbulence. The submersible PP or PVDF level switch sensor is mounted vertically inside the tank, and connected to a PLC or relay controller. FEATURES Baffle body and stabilized float dampen out switch chatter Submersible PP or PVDF sensor and cable for corrosive liquids 15VA dry contact selectable NO or NC state via wiring selection Compatible with Smart Trak and Switch-Pak installation fittings Orientation: ± 20º vertical Accuracy: ± 2mm in water Repeatibility: ± 1mm in water Specific gravity: 0.8 minimum Contact type: (1) SPDT reed Contact rating: 15 VA, 0.25A maximum Contact output: Selectable NO / NC Sensor rating: NEMA 6 (IP68) Sensor material: -13X1: PP, -53X1: PVDF Cable jack. mat.: -13X1: PP, -53X1: FEP Cable type: 3-conductor, shielded Cable length: 10’ (3m) Process mount: 3/4” NPT (3/4” Rp) Classification: General purpose Compliance: CE
