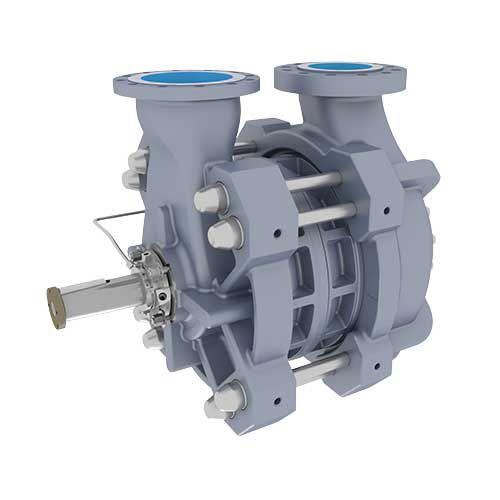

Water pump CSX

oilhydraulically-operatedimpeller

The CSX pump represents the next generation of segmental ring, multistage, diffuser-style pumps with stacked impellers and an axial balance device. It is engineered to deliver world-class high-efficiency operation in high pressure membrane feed applications in saltwater or brackish water reverse osmosis desalination plants as well as numerous general industry applications. Engineered for high pressure membrane feed service in SWRO plants. Low energy consumption ensured by advanced hydraulic design to maximize efficiency, precision-cast diffusers and channel rings. Prolonged operating life made possible by corrosion-resistant materials of construction including Super duplex A890 Gr.5A/6A or proprietary Alloy 885. Easy installation due to symmetrical suction and discharge heads that enable the pump nozzles to be rotated and positioned to suit a variety of piping layouts. Two bearing designs are available to meet customer and application requirements, including a fully product lubricated bearing arrangement that makes the pump more compact, more efficient and cleaner by removing oil or grease as a lubricant. It also eliminates one mechanical seal and both bearing housings ensuring a reduced pump footprint. Traditional oil lubricated version also available. Flowserve Hydraulic Inst. General Industries Other Industries Desalination
