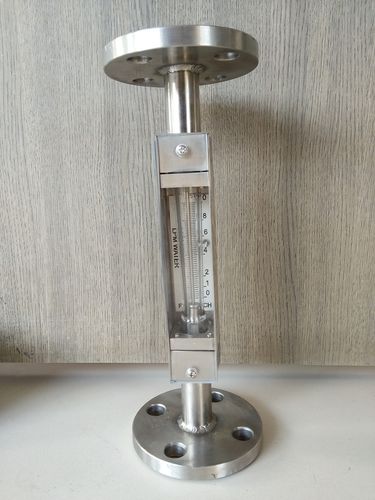

Variable-area flow meter FMIPL-TGTRM series

volumefor liquidsfor gas

DESIGN FEATURES: FOR ACRYLIC BODY ROTAMETER: This is made from solid Acrylic Block. Externally adjustable packing glands. Scale length is 100 mm. SPECIFICATIONS: Meter : Powder coated M.S., SS 304, SS 316 Float : SS 316L, SS 316, PTFE etc. Wetted Parts : SS 316L, SS 316, SS 304, PTFE etc. Pickings : Neoprene, PTFE etc. Tube : Borosilicate glass Scale Length : Model FMIPL-TGTRM 1-3 =65 mm, FMIPL-TGTRM 4-7 = 110 mm & FMIPL-TGTRM 8-17 =140 mm Temp. Max. : Up to 200°C depends on gland packing FOR GLASS TUBE ROTAMETER: Dowel Pin, side plate construction Detachable flow scales Externally adjustable packing glands. Laminated safety glass shielding Scale length is 100 mm. DESCRIPTION: “FLOWTECH” Variable Area Flow Meters “TINY ROTAMETERS” are intended for general in line metering applications (i.e. for Gas & Liquid) for low flow measurement and for purging applications. These are available in Acrylic Body Tube and Glass Tube design. These are working on the principle of Variable Area. The float moves freely up and down tap red Acrylic Body Tube OR Glass Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
