Ultrasonic flow sensor DSM2420

differential pressurefor water

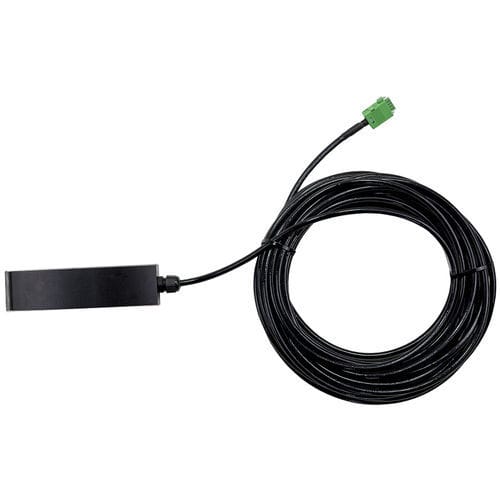

Sensor made of special plastic; resistant to aggressive media Special characteristics Mounting in the duct by means of adaptable stainless steel mounting shoes Use in EX atmosphere with FDL400 measuring device with integrated Z-barrier Description The DSM2420 sensor is a combined sensor for simultaneous measuring flow velocity and level in open or accessible closed channels of all types and shapes. Further product information The sensor is made of special plastic and is therefore resistant to practically all aggressive media found in water and waste water. The sensor can be mounted on any type of sewer using the appropriate adaptable stainless steel mounting shoes. When also used to measure the filling level, floor mounting is required. Technical Data Properties Dimensions 180 x 48 x 36,5 mm ( L x B x H ) Weight ca. 1,5 kg Protection class IP68 Cable length (standard) 15 m Bending radius > 10 x D (Kabeldurchmesser 6,25mm) = > 62,5mm Temperature range 0°C ... 50°C Mounting shoe material V2A 1,5mm Flow velocity Measuring range 0,01 - 4 m / s Measuring accuracy +/- 5 % vom Momentanwert im Kanal Temperature drift 0,1% / °C ( Meßspanne ) Temperature drift 0,05% / °C ( Nullpunkt ) Output signal 4 - 20 mA Filling level Measuring ranges 0 –1 m ; 0 – 2 m ; 0 – 4 m Measuring accuracy < 0,2% v.E. Summe aus Nichtlinearität, Hysterese und Wiederholbarkeit Temperature drift 0,005% / °C v.E. Meßspanne Temperature drift 0,005% / °C v.E. Nullpunkt Material Al2O3 (96%) aktive Fläche Output signal 4 – 20 mA Zero point norm 4 mA ( +/- 3 % )
