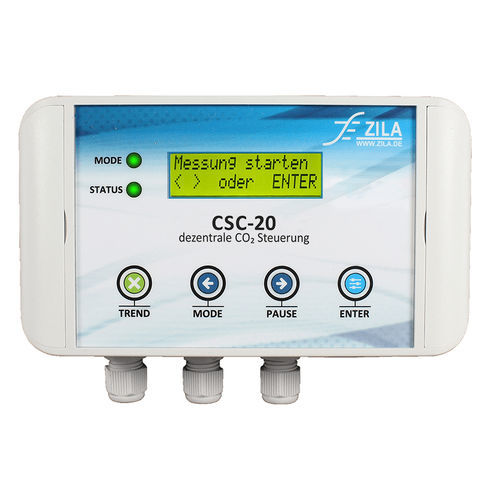

Ventilation control unit CSC-20 YUGO

automaticfor gas detectorsdigital

Automatic, controlled ventilation Special characteristics Maintenance-free, durable CO2 sensor Special characteristics Configurations for different applications and actuators Description Decentralised CO2 monitoring with direct control of various supply and exhaust air elements such as fans and dampers Further product information The decentralised CO2 control CSC-20 YUGO comes with an integrated CO2 sensor and can activate fans for supply and exhaust air, depending on the measured CO2 concentration. The control has a display indicating the measured values and also a total of four operating keys with which the parameters can be configured very easily thanks to the intuitive menu navigation. Due to the optical measuring principle NDIR (non-dispersive infrared absorption measurement), the integrated CO2 sensor is maintenance-free and durable. With all these features, the device contributes to an automatic, controlled and needs-based ventilation of all kinds of rooms. Technical Data Properties Power supply 230 V AC measuring range (CO2) 0..10.000 ppm Measuring accuracy CO2 ± 50ppm +3 % vom Messwert Operating conditions 0…50°C / 0…85 %rH Storage conditions -30…70°C / 0…85 %rH Protection class IP 31 EMV/ESD EN 50082-1, EN 50082-2 Signal output I²C
