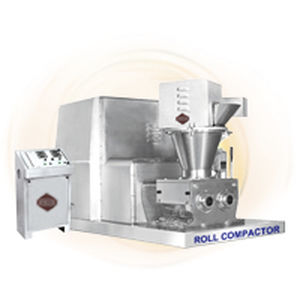

Granulation roller compactor ACRA-RC-200/150 / ACRA-RC-200/200

“ACCURA” MODEL Roll Compactor cGMP 200 X 150 (W) & 200 (W) Plain & Water Jacketed Useful for Formulation as well as API Units. Available with Corrugated, Knurling & Briquetted Rollers. Available with the arrangement of Online Roll Compactor Machine Screw is driven through A.C. Drive. Safety slipping clutch between gearbox and feed screw. Roll Compactor Machine also called as powder compactor/granulator is used for dry granulation method. It forces the fine powders between two counter rotating rollers and presses the fine powders in a solid compact or sheets, so called chips or flakes. Finally these chips or flakes are then reduced in size to the desired granules/grain size further with the help of Oscillating Granulator Machine or Multi Mill Machine or Comminuting Mill or Sizing Machine. The sieve size should be selected very carefully in order to prevent the generation of fines. The selected sieve defines the final granules/grains size. Also further to achieve excellent granules/grains can be made dust free by Screening (Sifter) Machine. The separated fines also can be Re-compacted/ Recycle with Roll Compactor Machine. In the process of compaction the fine powder or crystalline powder are fed to the charging hopper of the Roll Compactor. Here the vertical feed screw feeds the powder into the compacting zone of the compacting rollers through the pre-compacting chamber. The adjustable speed (through AC Variable Frequency Drive – AC VFD) of feed screw pressures the powder to pass strictly between the compacting rollers gap and therefore strong/hard chips/flakes forms from the fine or crystalline powder.
