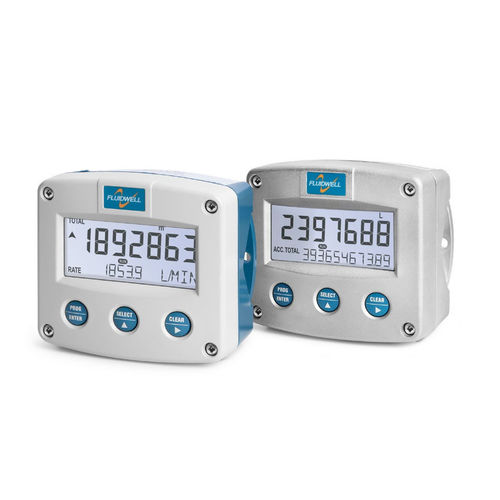

Flow indicator totalizer F012

LCD displaypanel-mount4-20 mA

The F012 is our most popular model. This local indicator displays the actual flow rate, total and accumulated total. Total can be reset to zero by pressing the CLEAR button twice. The accumulated total can register up to 11 digits and is backed-up in EEPROM memory every minute, just as the running total. On-screen engineering units are easily configured from a comprehensive selection. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Displays total and flow rate simultaneously. - Large digit selection for flow rate or total. - Flow rate: seven 17mm (0.67") or 8mm (0.31") digits. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Separate engineering units for flow rate and total. - Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit. - Selectable on-screen time units for flow rate: /sec, /min, /hour or /day. - Selectable on-screen engineering units for total: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit. - LED backlight with adjustable intensity. - Intrinsically safe according ATEX, IECEx, FM and CSA C-US. - GRP, Aluminum or high grade stainless steel enclosure.
