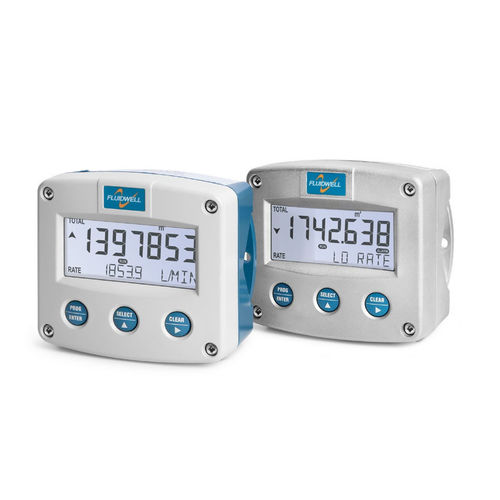

Flow indicator totalizer F118

LCD display4-20 mAanalog output

The F118 is a versatile flow rate indicator / transmitter and totalizer with the ability to precisely linearize the flowmeter signal. In addition to the average K-Factor or Span, ten linearization points can be entered with their frequencies or values. The unit will interpolate between these points, greatly enhancing accuracy in any flow range, even for very low frequency applications. Moreover, a continuous flow rate monitoring feature is available with high and low flow rate alarm values and up to three alarm outputs. Flow rate and total are transmitted with an analog and scaled pulse output. The display shows flow rate, total, accumulated total, alarm values, alarm messages and status. On-screen engineering units are easily configured from a comprehensive selection. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Applications - Liquid flow measurement with mechanic flowmeters where a precise calculation over the full measurement range and continuous flow rate monitoring is required. - The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
