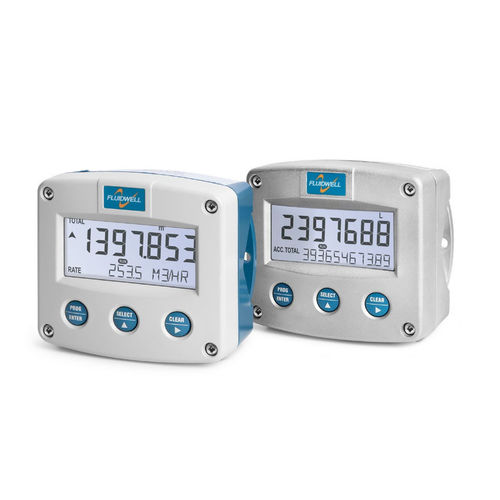

Liquid flow computer F127

with counting functiondata loggerATEX

The F127 flow computer has been developed to calculate corrected differential liquid volume at normal conditions. This is calculated by measuring the uncorrected volumetric flow and actual line temperature in both the supply and return line. These signals are processed with the thermal expansion coefficient algorithm stored in the flow computer. The reference temperature can be defined as desired (e.g. 15°C, 20°C or 60°F). The usual difficulties encountered in such applications include: pulsating flows, very low consumption readings, vibration and high ambient temperatures. These are all well catered for in the design and operation of the F127. The display shows the compensated consumption / flow rate, total, accumulated total and actual line temperatures. On-screen engineering units like Nm³ are easily configured from a comprehensive selection. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Applications - Net fuel consumption calculation for diesel engines on board of ships or locomotives, generators or burners, corrected for the influence of thermal product expansion.
