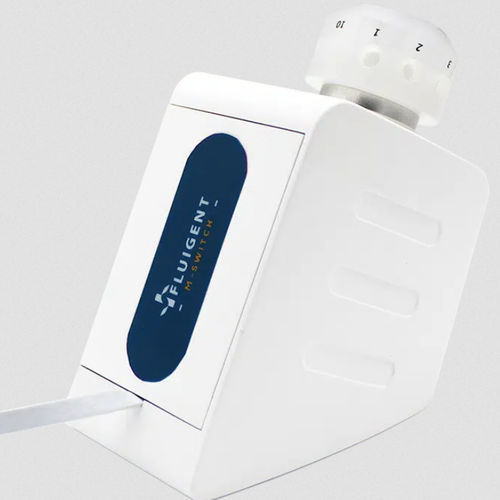

Distribution valve M-SWITCH™

manualselectorfor chemical products

The M-SWITCH™ is a bidirectional 11-port/10-position microfluidic valve for injection or selection of up to 10 different fluids or chips. The flow is bidirectional in the valve. The device can be used as a selector or as a distributor for either multiplexing or demultiplexing purposes. *Automation Valve actuation timing *Compact Uses minimum bench space *Quick Actuation & Response time *Accurate Low internal volume Features 11-port/10-position Any of the peripheral ports (numbered from 1 to 10) can be connected to the central channel, and the fluidic path created is bidirectional. The M-SWITCH™ is actuated by a motor that drives a rotor. It can also be used with a manifold to use a single pressure pump to deliver multiple liquids and simplify set-ups. Sample generation & collection Different concentrations of the molecule of interest can be injected into a chip generating water in oil droplets. The droplets can then be sorted at the outlet of the chip using the M-SWITCH™ depending on their analyte concentrations. Each step can be automated using OxyGEN software. Sequential injections Up to 10 liquidscan be selected sequentially to be delivered to a chip by the M-SWITCH™. The samples at the outlet of the chip may also be sorted by using a 2-SWITCH™ either into a collection tube or to waste. Each step can be automated using OxyGEN software. Automation The valve can be controlled by OxyGEN software for long-term experiments. Create a time-based protocol to set actuation timing of the valve(s).
