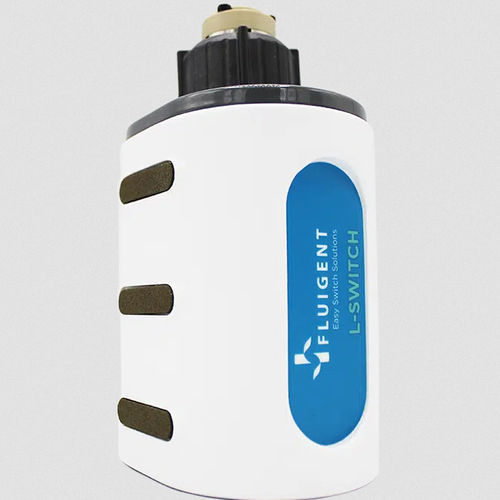

Compact valve L-SWITCH™

PEEKmotor6-way

The L-SWITCH™ is a bidirectional 6-port/2-position valve for precise sample injection or switching between different fluids. It is ideal for recirculation in cell culture applications. *Quick Valve actuation time *Compact Uses minimum bench space *Biocompatibility Biologically compatible *Accurate Low internal volume Features 6-port/2-position Peripheral ports (numbered from 1 to 6) can alternatively be connected the right or the left channels. The L-SWITCH™ is actuated by a motor that drives a rotor – where the fluidic path is engraved – against a stator – containing the fluidic paths. Fluid recirculation The L-SWITCH™ can be used as a cell culture tool: a small volume of buffer can be recirculated within a closed loop into the chip for several hours or days. Combined with our MFCS™ series or LineUp™ series it can achieve a highly stable flow with a positive impact on the shear stress. Sample injection The L-SWITCH™ valve enables one to load and inject a precise volume of fluid. By selecting the position of the L-SWITCH™ you will choose when you want to load the fluid then inject it (using a sample loop). Several sample loops are available from 5 µL to 100 µL. Automation The valve can be controlled by OxyGEN software for long-term experiments. Create a time-based protocol to set actuation timing of the valve(s).
