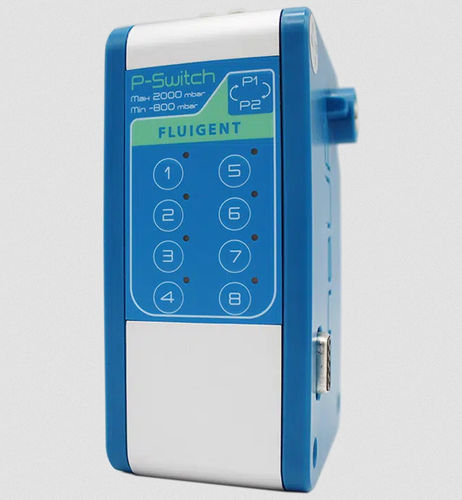

Valve controller LineUp™ P-SWITCH

The LineUp™ P-SWITCH is a pneumatic valve controller. By providing two pressure sources (any vacuum or pressure from -800 to +2000 mbar), each module is able to deliver one of the two provided pressures through 8 independent outlets. The module can be used to multiply the channel output number in the LineUp™ system or any other pressure system. *Multiple Multiply the outputs *Compact Uses minimum bench space *Adaptable Use with or without a PC *Intuitive Straight forward set up & use Features Expand as needed The LineUp™ series module can be combined together to add pressure/vacuum channels, valve control and turn one channel into 8 independent outlets using the P-SWITCH. Expand your system up to 32 outlets with 4 modules Pressure & vacuum compatibility Each P-SWITCH module requires 2 supplied sources overthe range or -800 mbar to 2 bar. Combined with Flow EZ™ and Push-Pull, set a versatile system for pressure-base microfluidic experiments. Local control Control and regulate pressure and flow rate without a PC using the LineUp™ hardware interface. Use the P-SWITCH buttons to quickly commute outlets between the two supplied pressure(s)/vacuum(s) and focus on the experiment. Parallelize reservoirs Connect the outlets of the P-SWITCH to independent reservoirs to perform independent injections. Pressurize up to 32 reservoirs simultaneously or independently. Actuate pneumatic valve Connect the outlets of the P-SWITCH directly to quake or on-chip pneumatic valves to actuate them. Control and handle the fluid on the chip without additional tubing.
