3D imager CS400

monitoringthermal imagingIR

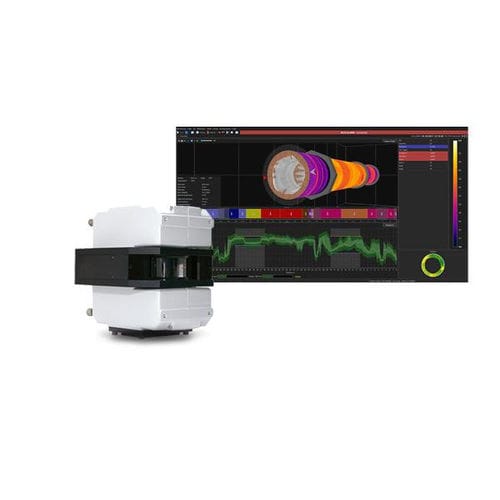

The CS400 Kiln Shell Imaging System relies on the MP Linescanner, which provides continuous, accurate and real-time thermal images and temperature measurements for moving processes. With the ability to scan up to 1024 data points in a single scan, the MP Linescanner can provide a complete picture of even the highest speed manufacturing processes, ensuring an accurate temperature reading. Key Features: - Polar charts highlighting coating thickness and brick thickness - Envelope profiles – including alarm functionality – over the entire kiln - Built-in, on-network storage to store historical data - Free scalable AOIs (areas, line and slice) including temperature trend analysis - Virtual 3D walkthroughs across the entire kiln - 3D views available per each defined kiln zone - Easy-to-use software configurations that showcase the scanner position relative to the kiln - Flexible image sizing and configurable orientations of rotation - Fail-safe “hot spot” alarm outputs
