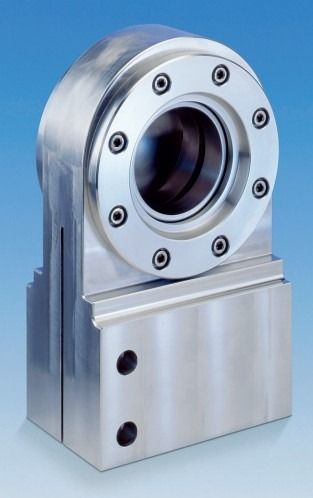

Female rod end FPR..CE

for hydraulic cylindersplain bearing

Rod Ends Cetop. recommendation RP 5SH for standard hydraulic cylinders. fastened by hexagon socket head cap srews to DIN 912-8 8 Spherical Plain Bearings. regreasaWe. fixed with snap rings Mounting dimensions to DIN 24333-24336 and ISO 6020/1 ISO 6022 Materials: Housing - Up to size 63 forged from heat-treated steel to C45. Aisi 1045 From size 70 made from nodular cast iron GS400 Bearing - Steel on steel bearing GE LO requiring lubrication Greasing: - Size 12 is not regreasable From size 16 fitted with hydraulic grease nipples to DIN 71412 On request: - With left hand thread (FPL CE)
