Fuel pump FDM 07

airfor chemicalsair-driven

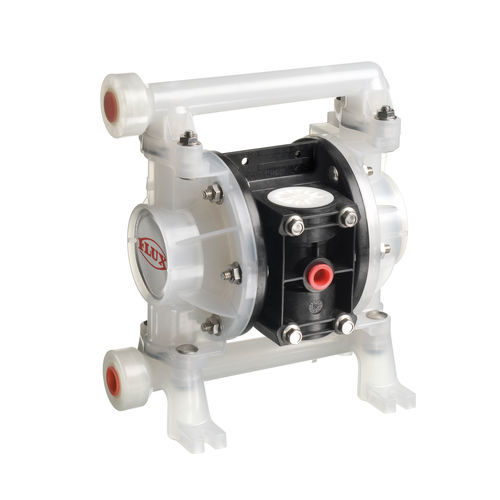

The FLUX air-operated diaphragm pump FDM 07 in injection-moulded version is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content. echnical data: Suction head product-filled: max. 9,5 m1 Size of solids: max. 1,6 mm Viscosity: min. 1 mPas - max. 15000 mPas2 Housing Materials: Acetal conductive, Polypropylene Media / Fluids: Abrasive media, Aggressive media, Highly flammable media, Viscous media Connection pressure side: 3/4 NPTF Connection suction side: 1/4 NPTF, G 1/4 Product attributes Especially energy efficient due to low air consumption Connection suction and pressure side each with internal and external threads 100 % start-up guarantee Solid matter sizes up to max. 1.6 mm Alternative connection position for suction- and pressure side Benefits Oil-free operation Self-priming Integrated silencer Versions available for use in hazardous areas
