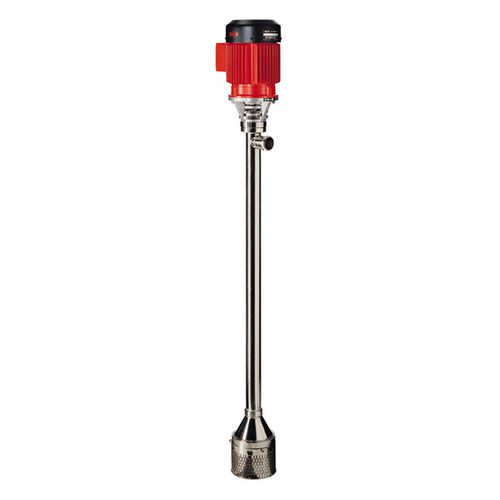

Centrifugal pump F 620

waterelectricstationary

To pump heavy flammable liquids from containers, tanks and open containers. The pump is available in two versions with open conical impeller or a closed centrifugal impeller in different sizes. Technical data: Viscosity: min. 1 mPas - max. 2500 mPas1 Diameter pump housing: max. 140 mm2 Diameter mounting flanges: max. 265 mm2 Materials outer tube: Stainless steel Media / Fluids: Acids, AdBlue®, Alkalis, Fuels Seal: mechanical seal Container: 1000 l IBC, Tanks > 1000 liters Product attributes Available with open conical rotor or closed impeller Two sizes available: Conical rotor 15 and 30 Impeller 157/3 and 157/5 Mounting flange with outer Ø 265 mm Consisting of an inner and outer tube as well as the drive shaft that is mounted in the inner tube Installation in pressurised tank or gas scrubber possible Benefits Suitable for tanks heights up to 4.1 m without bottom opening Pumps also fluids containing solids For mobile and stationary use Motor replaceable Pump is hermetically tight
