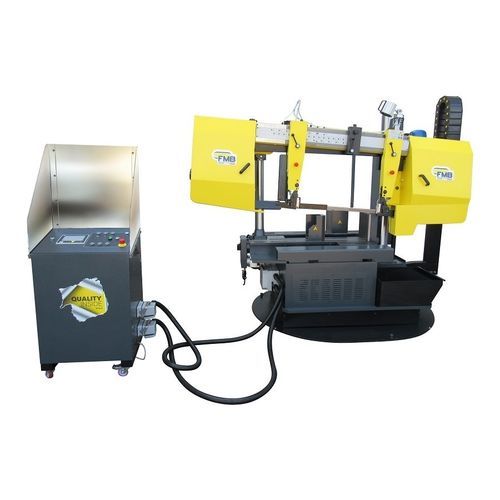

Band saw Olimpus 2 XL

for metalssemi-automaticdouble-column

Semiautomatic band saw to cut from 0° to 45° right. Head structure made in steel. Blade inclined of 5° to help section bars cut. Device against blade vibrations to reduce noise. Broken blade micro. Cutting zone lightening to help user’s work. Head approach on two chromate columns lubricated by a centralized system. Hydraulical blade tensioning. Head feeding system with hydraulic cylinder by turned off control unit for the energy saving and front balanced valve for feeding regulation and cutting optimizing. Set up possibility for full pipes and also rod cutting. Blade cleaning brush driven by gearbox. Blade guide with combined action of side bearings, carbide plates and top bearing, with a quick locking and unlocking system for the blade. Blade rotation sensor (SENS). Gearbox in hardened and grinded steel gears lubricated with long lasting grease. Material locking vice provided with motorized moving. Vice plane with a hardened wear and tear standing replaceable surface. Ergonomic working table and control panel. Very resistant work top supporting material on loading side (PAO). Reference to determine the cutting angle on loading side (45° left). Basement rotation system on bearing disc and stop at 45°. Hydraulic cooling pump for both blade guides.Hydraulic unit for head cylinder feeding. Electric 7” coloured control panel which can be positioned from the user in the chosen ergonomic position with regulation and visibility of the feeding gravity speed of the head and the analogical blade speed (m/min), pieces counter and blade speed regulation switch. Electrical cabinet with 24VAC auxiliary tension, main switch and electric drives.
