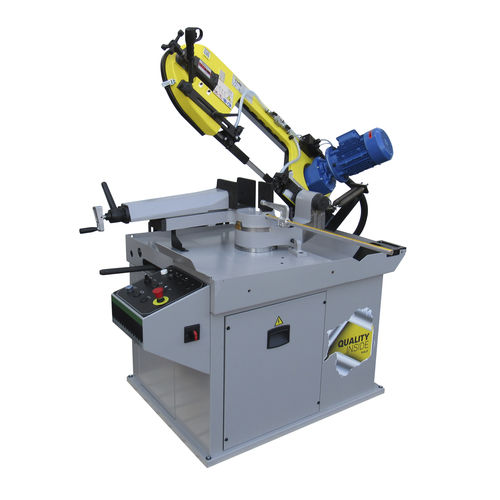

Band saw Triton

for metalsmanual actuationwith cooling system

-Manual band saw machine to cut from 0° to 60° right (manual/gravitational for version +G). -Head structure in special aluminium casting alloy. -Dynamometric blade tensioning. -Blade cleaning brush integrated in the head protection cover. -Head handgrip with integrated cycle button. -Blade guide with combined action of side bearings, carbide plates and top bearing. -Direct drive: Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease. (Mechanical variator 20÷100 m/min for version +V). -Output shaft of the reduction gear box Ø 40 mm and motor wheel connection with a keyless shaft/hub connection. -Material clamping vice with manual positioning and fast clamping. -Ergonomic working table and control panel. Head rotation angle stop at 0°, 45° and 60°. -Degrees measuring system, graduated scale and rugged in construction locking lever. -Loading side: Rugged in construction support roller with double positioning. -Millimetric reference length stop measuring system. -Cutting length 0÷600 mm. Heavy duty basement. -Sheet metal construction in different thickness, chips holding sides. -Front door with key locking. -Hydraulic cooling pump with 20 l. capacity tank for feeding both blade guides. -Electrical cabinet with 24VAC, lockable main switch and electric drives. -Total protection against highest voltage and short circuit current. Protection level IP 55. -Line voltage: 400V/50Hz/3Ph standard (230V/50Hz/1Ph-230V/50Hz/3Ph-110V/60Hz/1Ph-220V/60Hz/3Ph-440V/60Hz/3Ph-575V/60Hz/3Ph available). -Machine colours: yellow RAL 1018 and grey RAL 7036.
