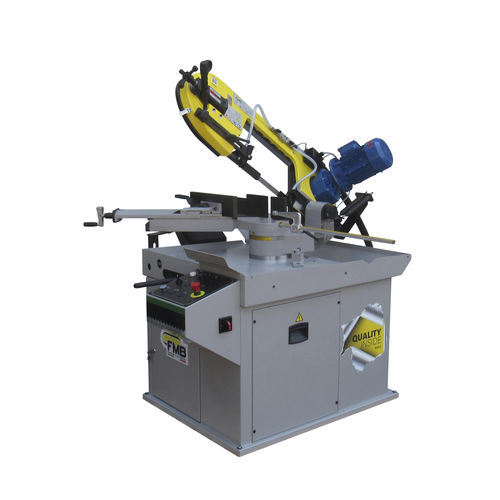

Band saw ANTARES

horizontalfor metalsmanual actuation

Manual band saw machine to cut from 0° to 60° right and 45° left (manual/gravitational for version +G). Head structure in special aluminium casting alloy. Dynamometric blade tensioning. Blade cleaning brush integrated in the head protection cover. Head handgrip with integrated cycle button. Blade guide with combined action of side bearings, carbide plates and top bearing. Direct drive: Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease. (Inverter for speed choice 0÷120 m/min for version +VHZ). Output shaft of the reduction gear box Ø 40 mm and motor wheel connection with a keyless shaft/hub connection. Material clamping vice inclined of 45° left, with manual positioning and fast clamping system. Ergonomic working table and control panel. Head rotation angle stop at 45° and 60°. Degrees measuring system, graduated scale and rugged in construction locking lever. Loading side: Rugged in construction support roller and chutes. Millimetric reference length stop measuring system. Cutting length 0÷600 mm. Heavy duty basement. Sheet metal construction in different thickness, chips holding sides. Front door with key locking. Hydraulic cooling pump with 20 l capacity tank for feeding both blade guides. Electrical cabinet with 24VAC, main lockable switch and electric drives. Total protection against highest voltage and short circuit current. Protection level IP 55. Line voltage: 400V/50Hz/3Ph standard (230V/50Hz/1Ph-230V/50Hz/3Ph-110V/60Hz/1Ph-220V/60Hz/3Ph-440V/60Hz/3Ph-575V/60Hz/3Ph available). Machine colours: yellow RAL 1018 and grey RAL 7036.
