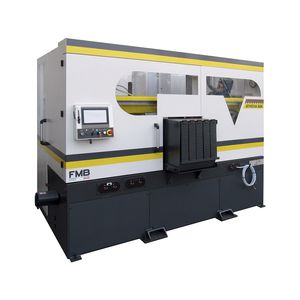

Band saw ZEUS+CN

horizontalfor metalsautomatic

• Automatic band saw machine to cut at 0°. • Head structure in 3 parts: special aluminium alloy, steel and cast iron. • Sensor for recognition of the head starting position. • Heavy duty basement with places for the lifting with forklift. • 700 mm long connected to the basement roller table to support material on loading side. • Improved protection barrieres with easy access on the posterior side for blade change or other operations. • Hydraulic unit for the head, the vice and the carriage feeding cylinders’ power supply. • Balanced valve regulating the head descent hydraulic cylinder. • Dynamometric blade tensioning, broken blade micro and blade rotation sensor. • Gear box with parallel axes, and gears with grinded, inclined, cemented teeth lubricated with long lasting oil. • Blade speed regulation with frequency variator (inverter) VHZ 16÷120 m/min. • Electrical cabinet, head descent regulation valve and cleaning gun in frontal ergonomic position. • Robust blade guide housing so structured: vertical staggered bearings for a first straightening, 2+2 carbide plates (19,5x19,5 mm) of containement and a bearing placed on the back of the blade to contrast the cutting stress (this considerably increases the duration of the blade compared to a creeping contrast). • These characteristics allow a very high vertical precision in cutting. • Material clamping vice with manual positioning equipped with hydraulic cylinder. • Workpiece clamping on both sides of the blade. • Cutting vice plate and carriage vice equipped with replaceable hardened pins to protect the material supporting surface. • Ergonomic work top and control panel.
