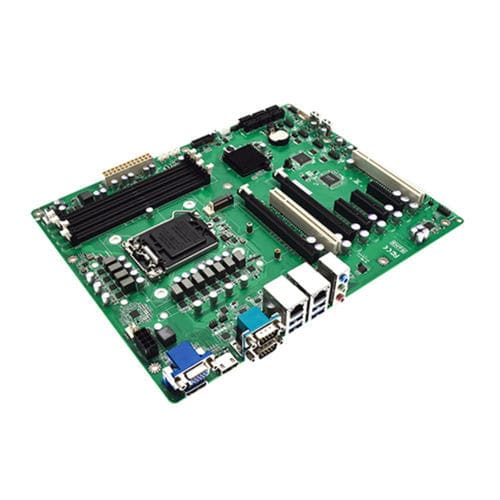

ATX motherboard IPC-Q477

Intel® Celeron®Intel® PentiumIntel® Core™ i series

Processor and Chipset:The IPC-Q477 ATX motherboards are equipped with the powerful Intel Core 10-11th Gen Core i7/i5/i3/Celeron/Pentium LGA1200 processor, supported by the Q470E/Q470 chipset with a TPD of 6W. This combination ensures high-performance processing with energy efficiency, making it ideal for applications that require sustained computational power. Graphics and Operating Systems:The onboard Intel HD Graphics integrated into the IPC-Q477 provides robust visual processing capabilities. The motherboard is compatible with Windows 10/11, LINUX, and UNIX operating systems, offering flexibility in software choices. The BIOS system, based on AMI UEFI, ensures a secure and user-friendly interface for system configuration and management. I/O Interfaces:The IPC-Q477 Single Board Computers boast a comprehensive set of I/O interfaces, including 2 Gigabit LAN ports (Intel219LM/i225V Gigabit LAN), and a ttriples display interfaces with VGA, HDMI, and DP for synchronous and asynchronous triple display capabilities. Audio is well catered for with 5.1 Channel support, including 1 LINE-OUT, 1 MIC-IN, and 1 LINE-IN. USB connectivity is ample with 4 USB3.1 (Gen1) ports. Power and Environmental Resistance:The IPC-Q477 supports a 24+8Pin ATX power supply with input voltages of +12V, +5V, +3.3V, and -12V. It is designed to operate in a wide temperature range from -20℃ to 60℃, and can be stored in even more extreme conditions from -40℃ to +85℃, making it suitable for harsh environments.
