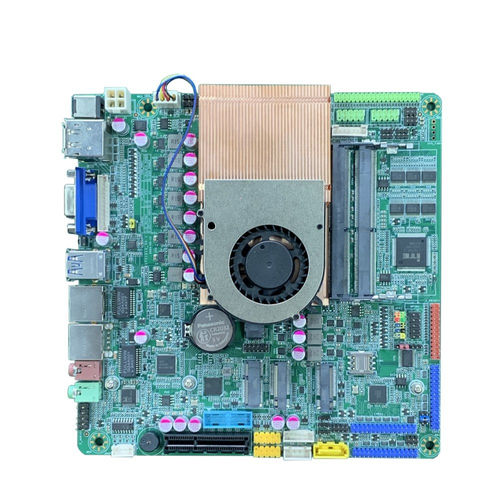

Industrial motherboard IPC-ITX1213

mini-ITXIntel® Core i3Intel® Core i5

A Mini ITX industrial motherboard designed for designed for a wide range of applications, including machine vision, elevator control, medical equipment, thermal imaging etc.Key IPC-ITX1213 Standard ITX Motherboards' features include support for Intel 12/13th processors. 1.Processor and Chipset: The IPC-ITX1213 Mini ITX is powered by Intel 12th 13th Gen Celeron i7/i5/i3 processors, coupled with an Intel SOC chipset. This ensures high processing capabilities tailored for industrial needs. 2.Memory Support: Equipped with two SO-DIMM slots for DDR4 1.2V memory, the standard Intel motherboard supports dual-channel 2133MHz/2400MHz DDR4 memory. 3.Graphics and Display: With Intel HD Graphics, the 13th Gen industrial motherboard offers a range of display options including 1x VGA, 1x HDMI, and 1x DP interface, along with 1x LVDS or 2eDP interfaces. 4.Networking: The 170*170mm motherboard includes 1x Intel 219LM and 1x Intel 210 network cards, both supporting Wake-on-LAN and PXE. 5.Storage and Expansion: Boasting 1x SATA3.0 interface and 1x NVME/SATA M.2 2280 interface with auto-switching, the IPC-ITX1213 versatile industrial motherboards offers flexibility in storage solutions. It also includes 1x M.2 key-E interface for Wi-Fi/BT, 1x PCIEx4, and 1x M.2 key-B interface for 5G modules, catering to various expansion needs. 6.I/O Interfaces: The M.2 key wifi 5G motherboard features 1 12V/9V power interface, 1 HDMI display interface, 1 button for CMOS reset, 2 USB3.0 ports, 1 RJ-45 Gigabit Ethernet port (Intel I219), and 2 USB2.0 ports (with USB2.0 and LAN2 being mutually exclusive, LAN2 using I210AT network chip), and 1 4pin ATX power interface (shared with a 2.54 PIN power header).
