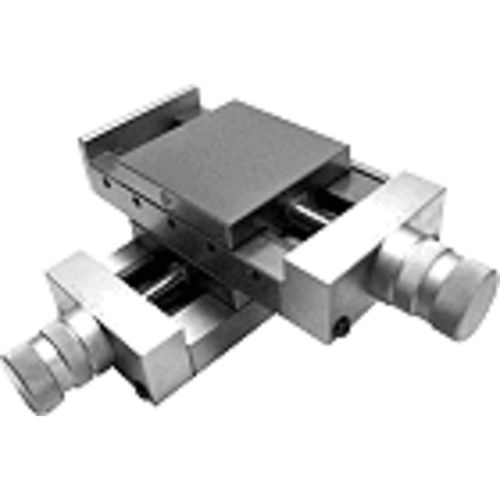

Linear coordinate table

manual2-axiscrossed roller

Our cross roller guide rails are freely interchangeable standard elements. Our guide rails allow the assembly of extremely rigid and precise linear guides without any play. Benefits •Able to carry high loads •running extremely smooth •require little space •long serviceable life •Mounting instructions: When mounting the guide rails make sure the bearing surfaces have been machined in a parallel manner and are to the angle. The tolerances of the bearing and mounting surfaces shall conform to the process tolerances of the guide rails (standard quality). The prestress applied depends on the respective mounting conditions, on the rigidity of the assembled slide structure respectively. We recommend to apply a prestress equivalent to a value between 5 and 20 % of the maximum admissible load. However, the load carrying ability of the overall guide rail structure thus realized will, at any case, be reduced by the prestress applied.
