Crossed roller linear guide SVAN series

aluminumcompactdovetail

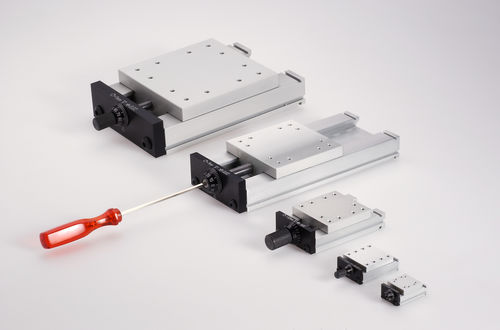

Taking a stand with SVAN: An innovative guidance system from Föhrenbach – now also available with position readout The classic amongst the linear adjustment units – the SVAN guidance system of aluminium: easy to combine, designed for high moment load, available from stock – this combination convinces and lets more and more users take a clear stand. The guide system can now be ordered from a size starting 30 mm with a digital position readout in order to be able to read the exact position over the entire carriage length. The high-quality system allows to adjust or set up products or objects of investigation even more exactly and to secure them at the desired place. The innovation of this is the clearance-free clamping with a height and side offset of less than 0.003 millimetres. The system is widely applied, especially in the areas of research and development: In order to position a measuring camera, to move an object of investigation under the microscope within the micrometre range or to position laser heads perfectly for precision machining, for example, for micro-drillings – if it has to be precise, specialists turn to SVAN from Föhrenbach. Clamps permit a fast combination to 2 axis systems or 3 axis systems or the fitting of axis systems on a base plate. Features Dovetail slides made of Aluminium, natural anodized 5 sizes: 20, 30, 50, 80, 120 mm with standard stroke between 5 and 100 mm Backlash-free clamping Compact sizes Adjustment with knurled micrometer knob (standard) or hex screwdriver High load ratings Guides without play High damping Scale with knurled micrometer knob Mounting kit (clamps) Easy and quick to combine to 2 axis systems and/or 3 axis systems
