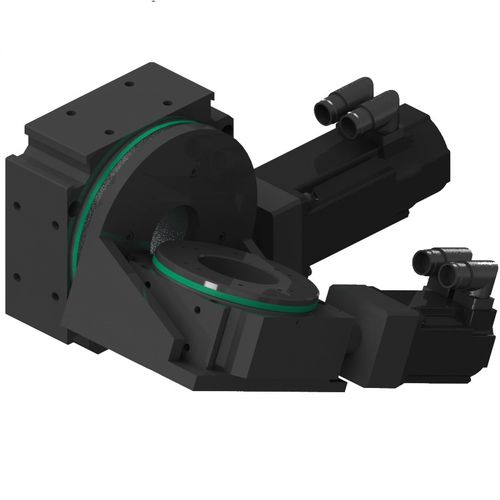

Motor-driven rotary table RT2A series

horizontaltiltingfor machine tools

The new designed rotary swivel unit RT2A is the ideal solution for retrofitting your machine with a 4th and 5th axis. It is based on the proven and robust rotary tables of the RT2A series. The design is kept very compact to ensure the best possible use of space with high load capacity. The rotary tables are equipped with an integrated precision roller bearing, which ensures high torque capacity, radial and axial run-out accuracy. The rotary swivel unit RT2A is available in the size variants RT2A150/200 and RT2A100/150. Various stepper or servo motors can be used as drives. In addition, various types of end or reference point switches are available. The swivel range of the swivel axis can be individually defined, the rotary axis can be rotated without limit. Thus the RT2A rotary swivel unit combines all the advantages of a field-proven standard product with the flexibility of a special version.
