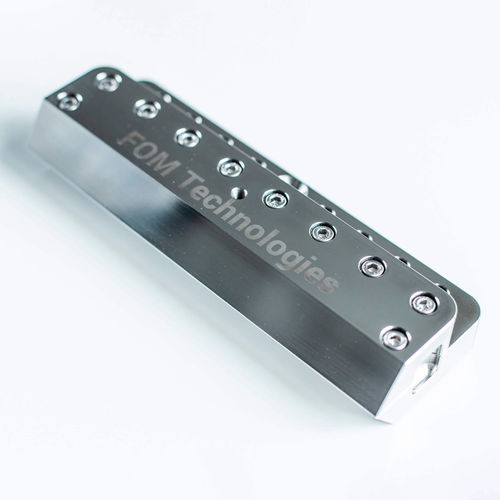

Slot die coater Research series | X-Large

pilot-scale

• - State-of-the-art Slot-die head • - Unique design providing flexible coating width of: 101-150 mm • - Default coating width: 150 mm • - Modular designed for easy switch of flexible sized coating shims • - Single and multiple stripe patterns • - Surface treated special grade stainless steel • - Top class corrosion resistance and durability • - Ultra low ink usage • - Dead volume < 50 μL for the 13 mm shim • - Extreme print accuracy, with a compound tolerance of < 10 microns • - CE compliant / UL • - Viscosity range: 1-10.000 CPS • - Packaging and storage: Professional flightcase Produced from some of the hardest steel in the world, the material undergoes meticulously processes to provide stable and ultra-precise accuracy. After many years of innovation, we provide coating equipment with very low dead-volume, elegant change of coating width via shims within defined ranges. The steel surfaces are specially treated to resist most chemicals and constructed for an easy clean to prolong the durability and lifetime of the product. Our Slot-die heads can be used for the following applications: • - PEM Fuel cells • - Battery Slurries • - OPV • - OLED • - Perovskites • - Transparent Conductive Foils • - Printed Electronics (Lab-on-a-chip)
