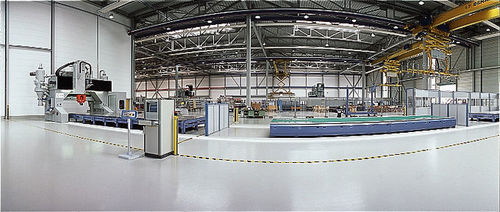

5-axis CNC milling machine ENDURA® 10LBuniversalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Machined material
- for aluminum
- X travel
41,500 mm
(1,633.86 in)- Y travel
4,100 mm
(161.42 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
30,000 rpm
(188,496 rad.min-1)- Power
20 kW
(27.19 hp)
Description
AVIATION INDUSTRY
Surface Milling Machine ENDURA® 10LB
for HSC machining of components from the aviation industry made of aluminium, GFRP, CFRP, GLARE®
milling head 2.1 with milling head suction and 2 pieces separators (moving along, protected against explosion)
SIEMENS Sinumerik 840D
20-fold tool changer sound insulation cabinet
riveting system (moving along)
measuring system
3 clamping tables (3,500 x 10,800 mm per table)
vacuum-clamping-system
erected at floor level
Catalogs
No catalogs are available for this product.
See all of FOOKE GmbH‘s catalogs
