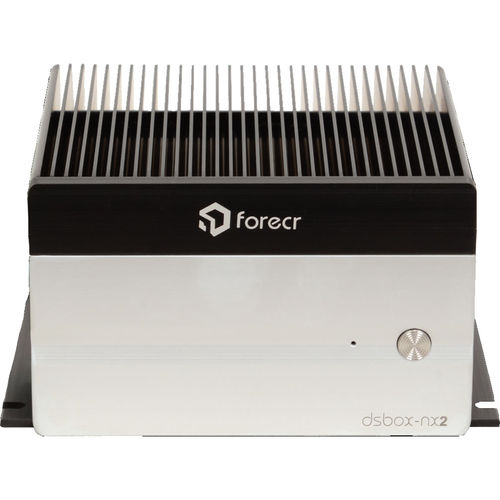

Fanless PC DSBOX-NX2

Edge AIboxNVIDIA® Jetson Xavier™ NX

Industrial Fanless BOX PC with NVIDIA Jetson Xavier NX Supercomputer performance Industrial PC platform for multi-stream deep learning edge analytics DSBOX-NX2 is your supercomputer performance Industrial PC platform for multi-stream deep learning edge analytics. It can decode up to 32 video streams in 1080p at 30 FPS with its powerful NVIDIA® Jetson™ Xavier™ NX processor. DSBOX-NX2 can be used in any industrial environment with its extended operating temperature range. You can connect to any desired industrial system, production line or network since DSBOX-NX2 offers a wide range of industrial connectivity options. In the hardware design process of DSBOX-NX2, we considered all the specification of high-speed interfaces. Every trace is designed to deliver maximum throughput to its users. Features: CPU - Six-core NVIDIA Carmel ARM® v8.2 64-bit GPU - NVIDIA Volta™ GPU with 48 Tensor Cores Memory - 8 GB 128-bit LPDDR4x Graphics Interfaces - 1xHDMI 2.0(max resolution 3840x2160) Interfaces - 1x Gigabit Ethernet 2x USB 3.1 Type-A 1x CAN Bus 1x RS232/422/485 (software configurable) 2 Digital Input / 3 Digital Output Wireless Communication - WiFi/Bluetooth/LTE/5G Connectivity by extension sockets Power Supply - 9-28 VDC Internal Extension Sockets - 1x M.2 Type-E Key, 1x M.2 Type-B Key Internal Mass Storage - 16 GB eMMC 5.1 Flash, 1x MicroSD 1x M.2 Key-M SSD Slot Ambient Conditions - -25°C … +65°C Form Factor / Dimensions - 110 mm x 130 mm x 60 mm Operating Systems - Ubuntu Linux 18.04
