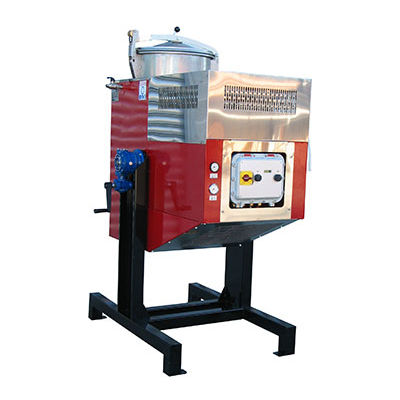

Solvent distiller Di 120

For liquid contaminants, the process residues are discharged by a simple rotation of the plant. For solid contaminants, like paints, polymers, resins and glues, the practical “Rec-Bag” bag eliminates any problem of discharge and cleaning. Useful loading capacity: 120 litres Distillation process time : 4-5 hours •Explosion proof version ATEX approved •For recycling of flammable and not flammable solvents •Loading capacity: 120 litres •Total volume of the boiler: 210 litres •Inner diameter of the boiler: 500 mm •Processing time: hours 4,00 - 5,30 •Working temperature: 50 - 180 °C •Operating: atmospheric pressure •Voltage: 4000 V - 50 Hz •Electrical supply: three phase + earth •Connected power: 7000 W •Electrical protection: II2G IIA T3 to T2 •Vapour condenser: stainless steel – cooled by air(on request - version “Wx” - cooled by water in open circuit) •Cover gasket: standardDimensions: cm 130 x 91 x 200 H •Weight: 402 kg •Packing list for shipment: Cardboard on pallet •Cm 175 x 135 x 217H - Kg. 453
