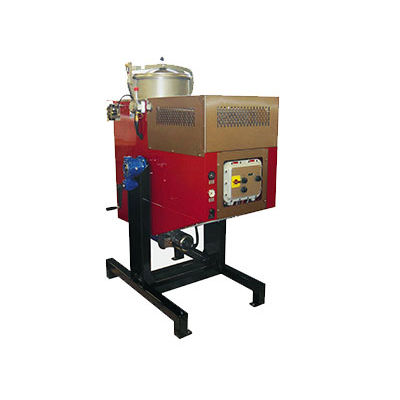

Solvent distiller DiQ 120

A scraper inside the boiler, equipped with adjustable metallic blades, keeping in movement the product to be treated, allows to obtain the complete separation between solvent and contaminants. An automatic drying cycle allows the residues to be extracted as a powder. Residue discharge by tilting the plant. Useful loading capacity: 120 litres Distillation process time : 4-5 hours •Explosion proof version ATEX approved •For recycling of flammable and not flammable solvents •Loading capacity: 120 litres •Total volume of the boiler: 210 litres •Inner diameter of the boiler: 500 mm •Processing time: hours 4,00 - 5,30 •Working temperature: 50 - 180 °C •Operating: atmospheric pressure •Voltage: 4000 V - 50 Hz •Electrical supply: three phases + earth •Connected power: 7500 W •Electrical protection: II2G IIA T3 to T2 •Vapour condenser: stainless steel – cooled by air(on request - version “Wx” - cooled by water in open circuit) •Dimensions: Cm 130 x 91x 200 H •Weight: 402 kg •Packing list for shipment: Cardboard on pallet •Cm 175 x 135 x 217 H - Kg. 533
