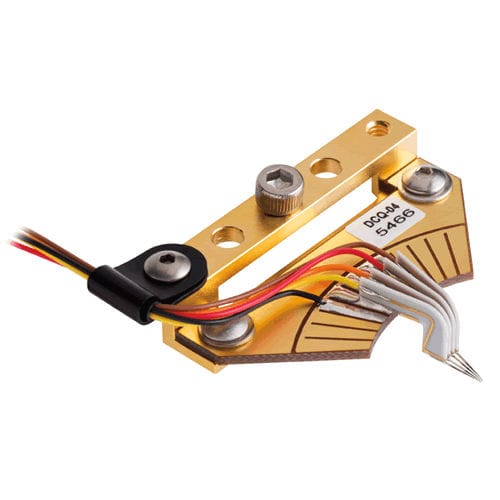

Probe DC-Q

The DCQ probes use controlled impedance, ceramic blade needles for low noise and high performance. This needle style allows the placement of high-quality bypass capacitors with very little series inductance due to their close proximity to the probe tip. All of the needles are connected to a common ground plane but individual needles can be easily (ground) isolated for additional low noise performance. A maximum of 16 needles are available for standard configurations and a maximum of 24 needles for custom configurations.
