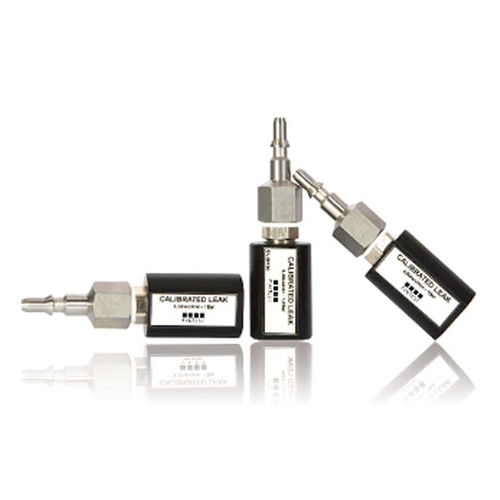

Calibrated leak M0710

M0710 is the new ForTest® leak –certificated series for verifying leaks during automated tests. The instrument has been patented european wide. Employees that use leak identification instruments need to know the calibration of those instruments at any moment, so M0710 is the key element used to verify the calibration. If the instrument recognizes the calibrated leak, it is correctly set. M0710 is sold with the 1/8” pneumatic connector or with Staubli® male connector. For Test calibrated leak is composed by an element calibrated for the requested porosity (leak scales varying from 10 cc/h to 200 cc/min) and a RFID transponder that keeps all numerical values and time ranges crypted. M0710 is made of stainless steel, to guarantee an exceptional stability and corrosion protection. For Test M0710 is made using specific Pressure and Flow values, in order to satisfy, with maximum precision in terms of loss rates, the customer needs. Every M0710 is supplied with a calibration certificate and a protective package for a correct stockage.
