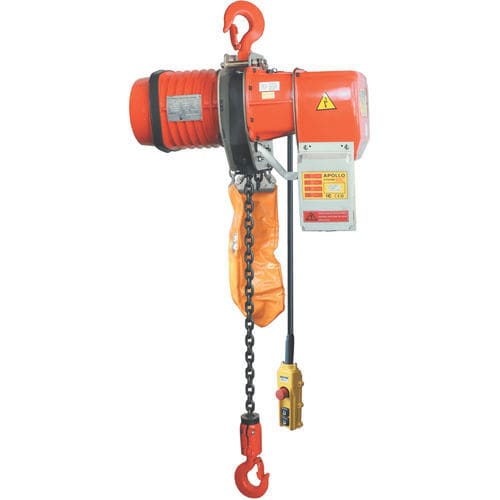

Electric chain hoist PRO-YSF series

lightweight

Reliable single phase electric chain hoist PROlift® powered by Blackbear®, with single speed and motor duty of 15% E.D. The hoist is fitted with grade 80 calibrated chain and proper chain bag. Standard power supply is 230V / 50Hz. Manufactured according to Machinery Directive (2006/42/EC) and Low Voltages Directive (2006/95/EC/). Features: • aluminum alloy casting, features rigid structure and light weight; • motor frame is equipped with radiant cooling fins; • motor has an electromagnetic brake controller - unique design in its field, patented, features simultaneous braking, even under full load; • fitted at both top and bottom ends with load limiters, shuts off power automatically to prevent load chain from running out; • the hooks are made from hot forged high tensile steel, they are rigid and durable, have 360° swivel, also fitted with safety latch to assure safe lifting; • double high-tensile alloy steel plate bracket, features rugged and durable construction; • brake - an advanced design, assure secure banking even under overload; in conjunction with motor brake, features DOUBLE BRAKE SYSTEM for safety and durability in hoist operation; • two buttons (up/down) pendant controlled and on demand, radio controlled, both with third safety emergency button; • no fuse breaker fuses, with high performance magnetic contacts and phase error relay; • Ingress protection code IP42 and FEM 1Dm rating.
