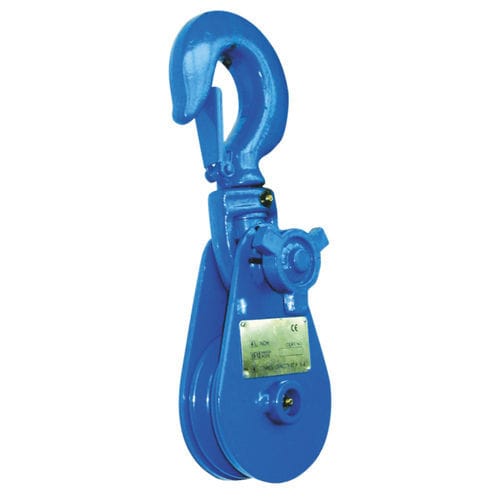

Lifting pulley with hook PRO-HB series
for heavy loads

Lifting pulley with hook - PRO-HB series - Forum Industry SRL - for heavy loads
Lifting pulley with hook - PRO-HB series - Forum Industry SRL - for heavy loads
Add to favorites
Compare this product


Characteristics

Other characteristics
with hook, for heavy loads
Outside Diameter

Max.: 500 mm
(19.69 in)

Min.: 75 mm
(2.95 in)

Cable diameter

Max.: 35 mm
(1.38 in)

Min.: 7 mm
(0.28 in)

Maximum working load

Max.: 30 t
(33.07 us ton)

Min.: 2 t
(2.2 us ton)

Weight

Max.: 213 kg
(469.58 lb)

Min.: 3.9 kg
(8.6 lb)

Description

Heavy duty hook pulleys are intended to handle large and very large weights and operate on the principle of force multiplication. This model comes with a hook at the top. The manufacturing process of this heavy-duty hook pulley complies with the requirements of Machinery Directive. The PROlift® pulleys are provided with an identification plate on which are the product series, the year of manufacture, the maximum workload and our identification data. The safety factor for pulleys is 4 and they are proof load tested at 1.5 x WLL! It is strictly forbidden to exceed working load limit WLL!
