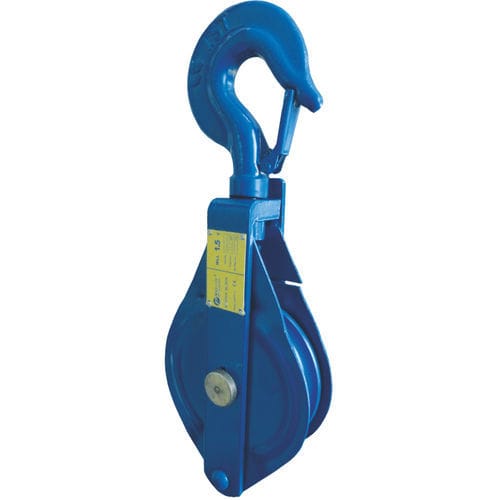

Roller lifting pulley PRO-H serieslight-duty
Add to favorites
Compare this product
Characteristics
- Type
- roller
- Other characteristics
- light-duty
- Outside Diameter
Min.: 75 mm
(2.95 in)Max.: 350 mm
(13.78 in)- Cable diameter
Min.: 8 mm
(0.31 in)Max.: 28 mm
(1.1 in)- Maximum working load
Min.: 500 kg
(1,102.31 lb)Max.: 10,000 kg
(11.02 lb)- Weight
Min.: 1.6 kg
(3.53 lb)Max.: 102 kg
(224.87 lb)
Description
Hook pulleys are intended to handle large and very large weights and operate on the principle of force multiplication.
This model comes with a hook at the top and is available in the single-roll version PRO-HS and double-rolling PRO-HD.
The manufacturing process of this hook pulley complies with the requirements of Machinery Directive.
The PROlift® pulleys are provided with an identification plate on which are the product series, the year of manufacture, the maximum workload and our identification data.
The safety factor for pulleys is 4 and they are proof load tested at 1.5 x WLL!
It is strictly forbidden to exceed working load limit WLL!
